Poolside linear LED lighting in Frankfort IL 60423
Aluminight Custom Outdoor Lighting completed a poolside linear LED accent lighting installation in Frankfort, Illinois 60423, serving a residential property in Will County. The homeowner wanted elegant, low-profile illumination that would define edges, improve nighttime safety, and elevate the backyard’s entertaining ambiance without visible glare. Before our work, the patio, outdoor kitchen, planters, and fire features disappeared after dark. After installation, clean white lines now trace the hardscape, reflecting beautifully across the pool and turning the yard into an inviting oasis for evening relaxation and gatherings.
Frankfort poolside LED accent lighting installation details
This project focused on precise linear illumination across multiple architectural elements around the pool. The scope included two planter boxes illuminated across the front of each with 8 feet of linear light, the outdoor grill lit at the front and both left and right sides, the island wrapped on all four sides, and three fire bowl caps highlighted on all four sides per bowl to create floating, jewel-like accents at night. We specified a linear, silicone-injected, white, side-flex LED solution rated at 2W per foot, delivering 72 lumens per foot and operating on 10–15V low voltage for performance, safety, and durability in a poolside environment. The expected outcome was a continuous, refined glow that defines edges, enhances visibility, and ties the entire outdoor living area together with a modern, resort-style finish.
Materials for poolside linear LED installation Frankfort
We used silicone-injected, white, side-flex linear LEDs at 2W per foot and 72 lumens per foot, 10–15V, chosen for their superior water resistance, UV stability, and flexibility along curved or tight-return edges. To ensure longevity and a professional aesthetic, we mounted the LED runs in low-profile aluminum channels with diffused lenses that act as both heat sinks and glare shields. Weatherproof end caps, IP68-rated connectors, heat-shrink splices, and gel-filled junction components protected every connection point. We powered the system with a low-voltage, multi-tap transformer sized to the total load and balanced for voltage drop, paired with zone control for fine-tuning brightness by area. All conductors were direct-burial copper landscape cable routed in protective conduit where needed, with stainless steel hardware and exterior-rated adhesives designed to withstand sun, moisture, and pool chemicals. Tools included a laser level for perfect sightlines, miter equipment for precise corners, a multimeter for voltage verification, and a heat gun and crimpers for sealed connections.
Challenges solved in Frankfort LED poolside lighting
Poolside projects demand meticulous waterproofing and careful light control to avoid glare off the water. We overcame these challenges by recessing the LEDs in aluminum channels with diffused lenses and setting each run into shadow lines beneath caps and ledges. The side-flex profile handled tight bends and transitions at the grill, island corners, and fire bowl caps without kinking, while precision-mitered corners maintained clean, unbroken lines. To prevent dimming at the far ends, we calculated voltage drop in advance and used multi-tap outputs and strategic home runs to equalize brightness across planter boxes, the grill, the island, and three fire bowls. All penetrations and terminations were sealed, drip loops were added, and expansion gaps were integrated to accommodate seasonal movement of stone and metal components. The transformer was placed on a GFCI-protected circuit and sited for safe, code-compliant clearances from the pool.
How we installed poolside LEDs in Frankfort IL 60423
Initial assessment began with an on-site consultation to map exact lighting lines and cable paths around the pool, planters, grill, island, and three fire bowl caps. We confirmed the client’s preference for a refined white tone, performed brightness demos after dusk, measured total linear footage, and engineered circuits for balanced illumination. A layout plan separated zones for the planter fronts, grill sides and front, island perimeter, and each fire bowl to allow targeted control and even output.
During execution, we mounted aluminum channels and diffusers precisely at the front of both 8-foot planter boxes, then continued along the grill’s front, left, and right edges for functional task glow without hotspots. We wrapped the island on all four sides to create a continuous floating effect and traced all four sides of each of the three fire bowl caps for a striking, symmetrical highlight. Each linear section was cut to length, sealed with end caps, and connected using IP-rated fittings. Cables were routed in protected paths, buried discreetly, and labeled at junction points. After energizing the system, we verified voltage at the farthest fixtures, adjusted transformer taps as needed, and fine-tuned dimming per zone to achieve uniform brightness.
Final results delivered a cohesive, modern aesthetic: crisp, continuous lines along hardscape edges, soft reflections across the water, and safer nighttime circulation around the pool and outdoor kitchen. We walked the homeowner through operation and care, documented the zones and transformer settings, and provided warranty support. Another Frankfort backyard now shines brightest when night falls—crafted with precision by Aluminight Custom Outdoor Lighting.

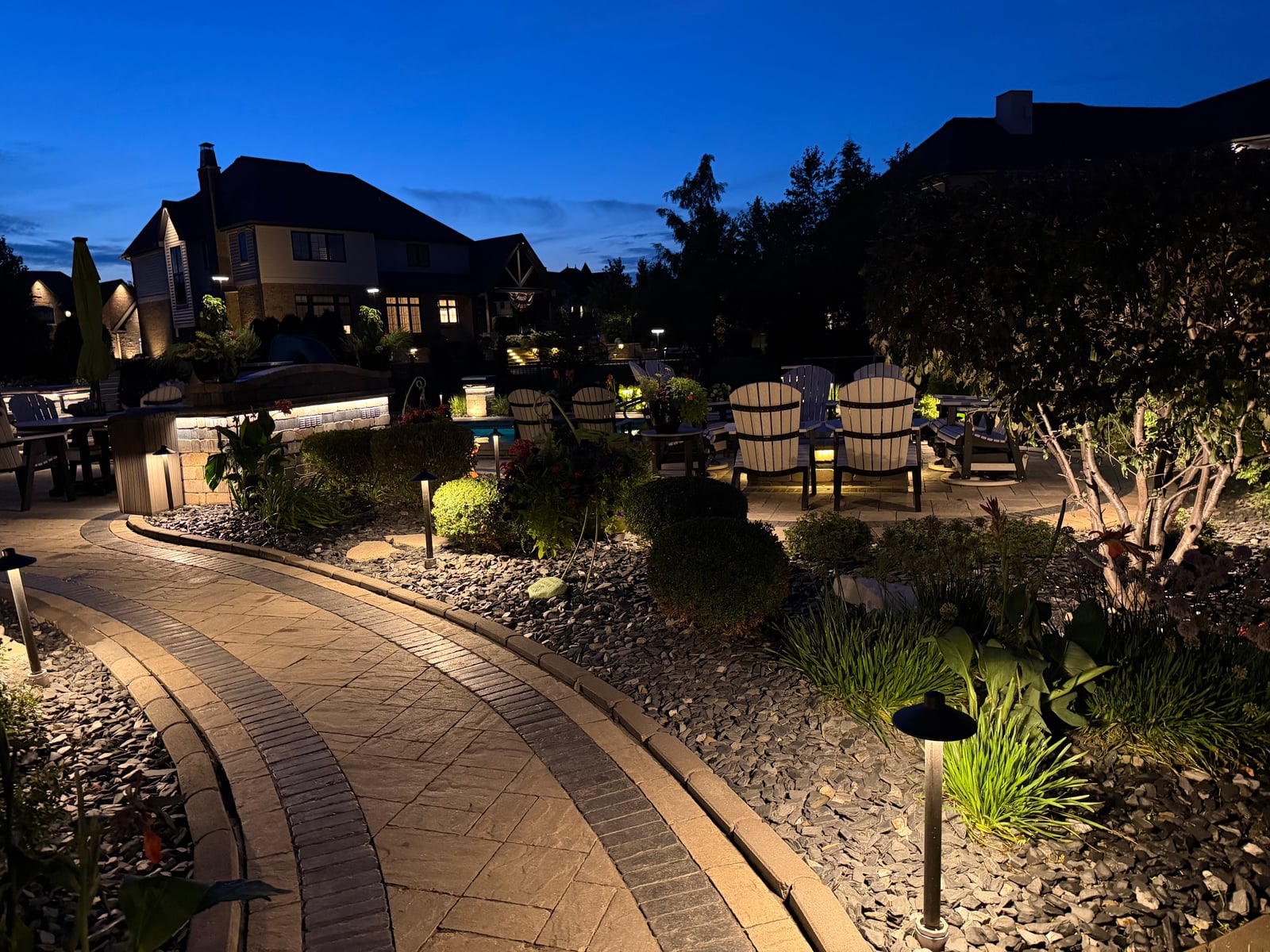

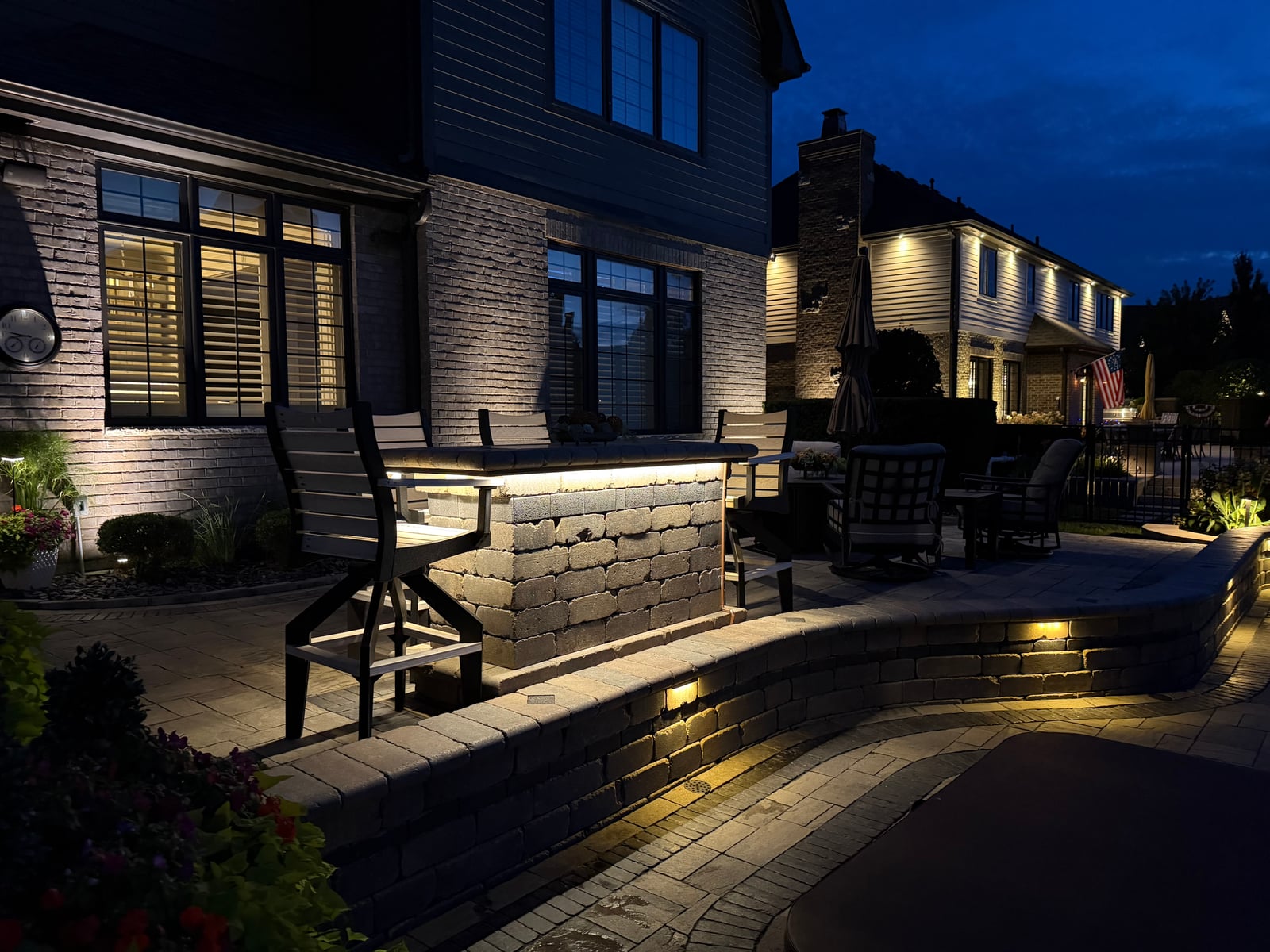

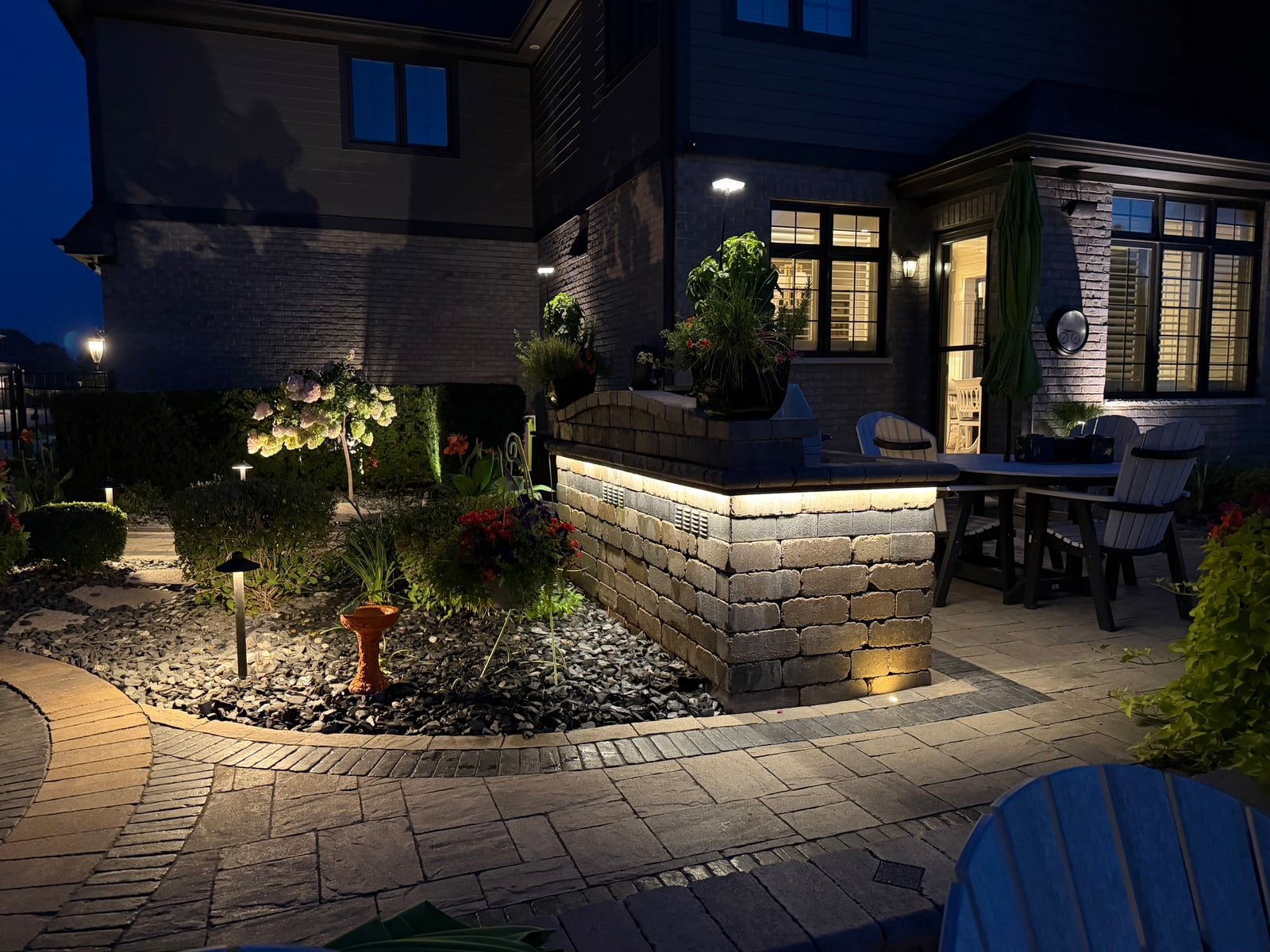

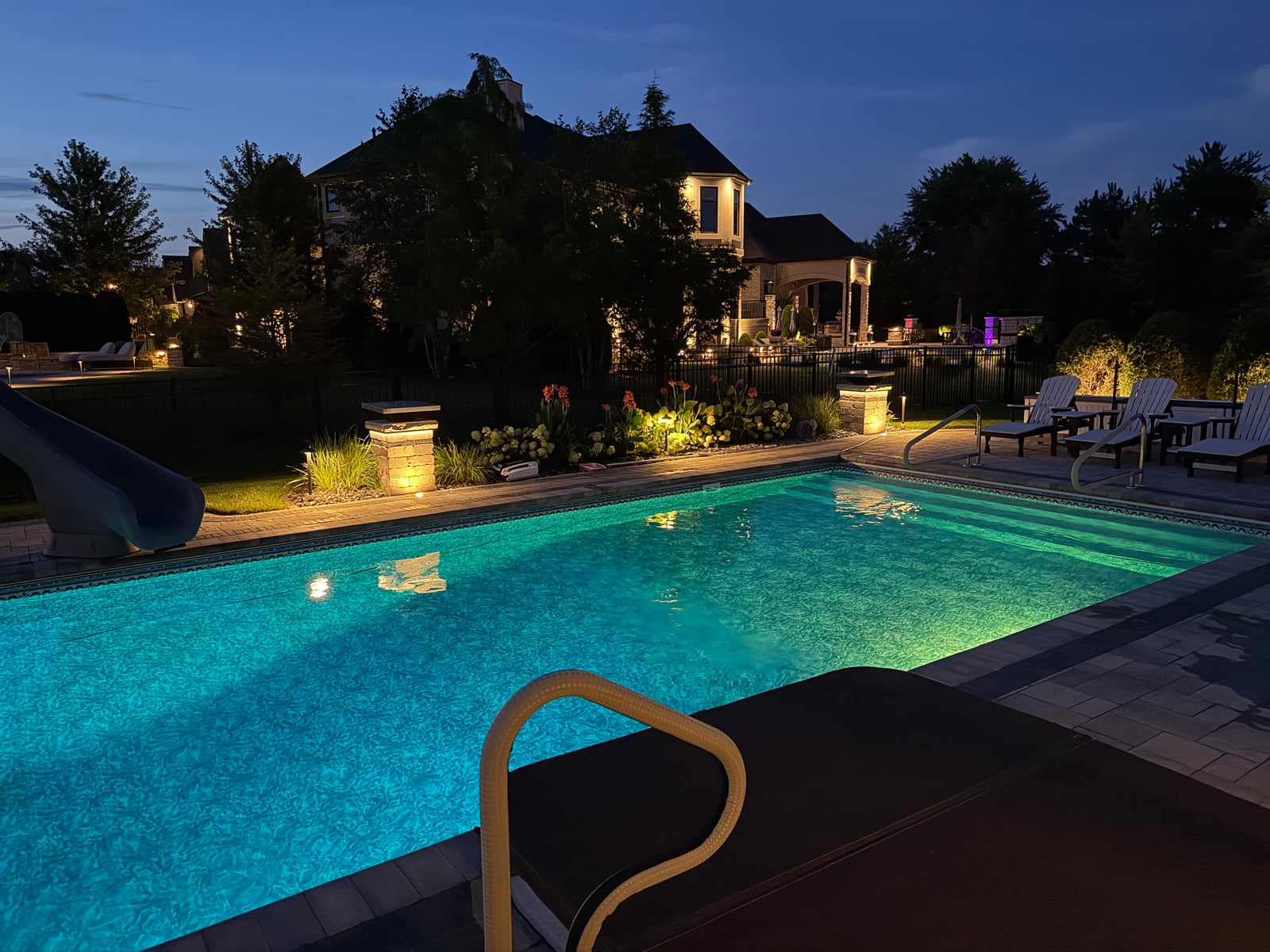

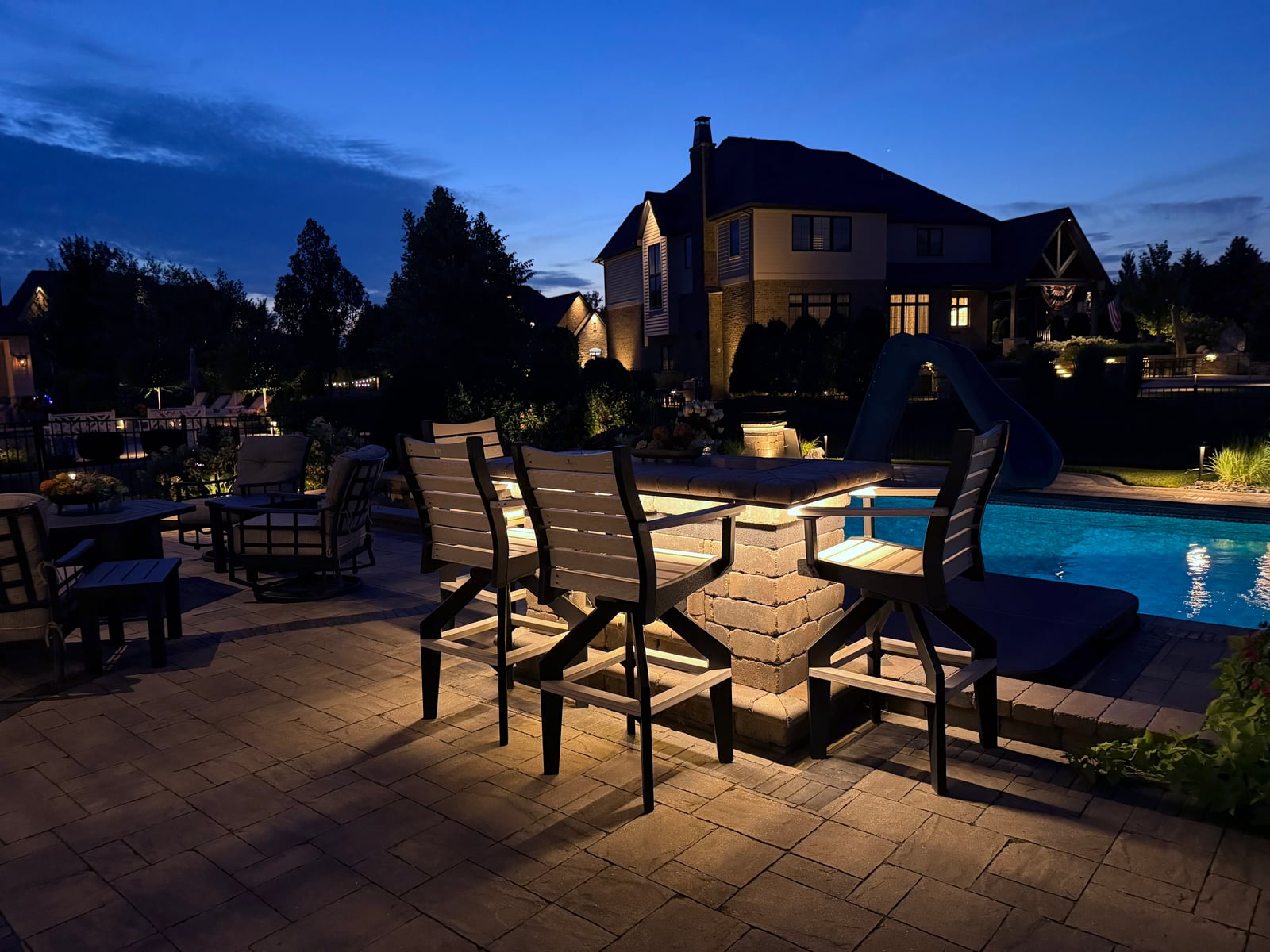

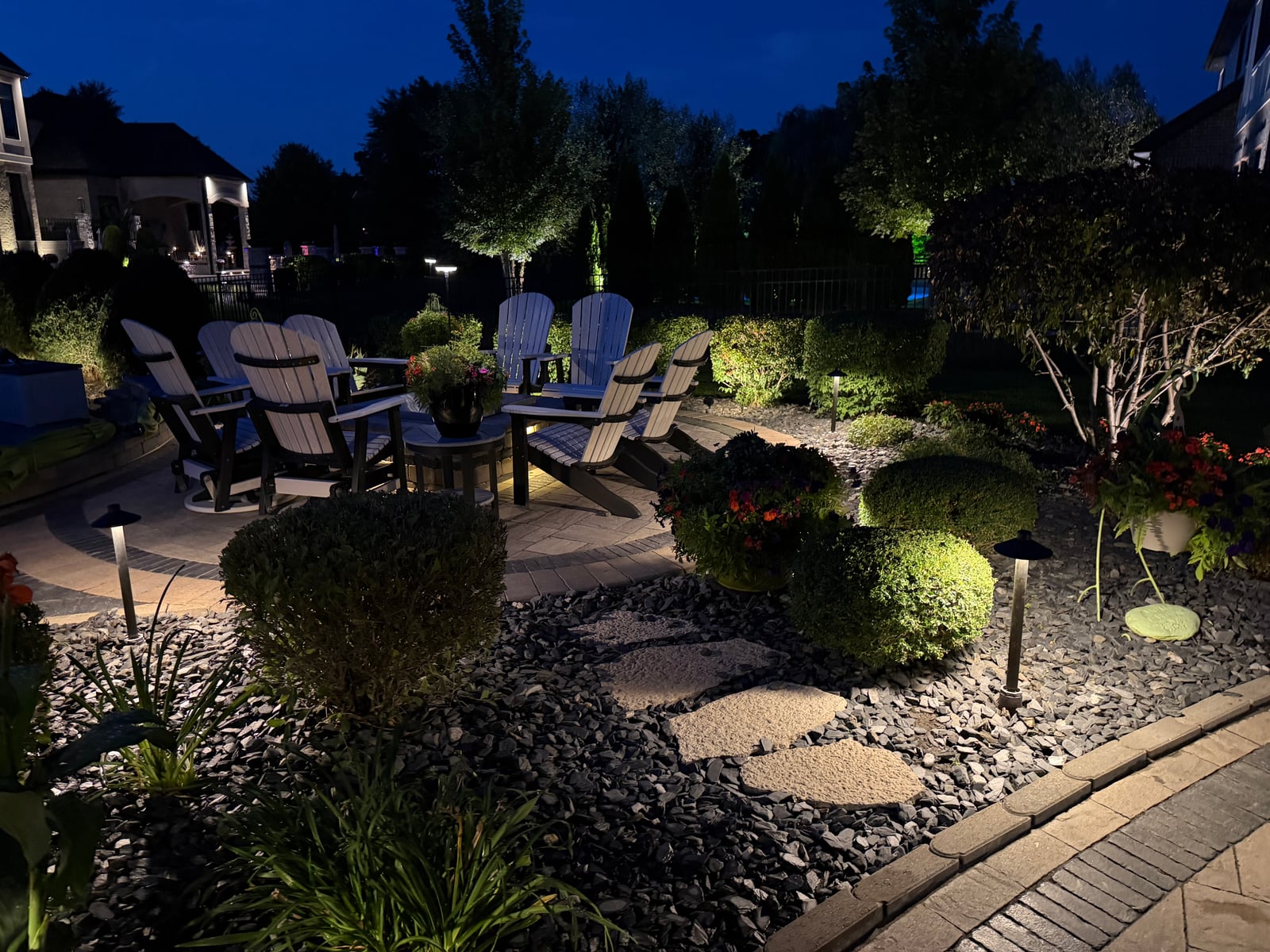

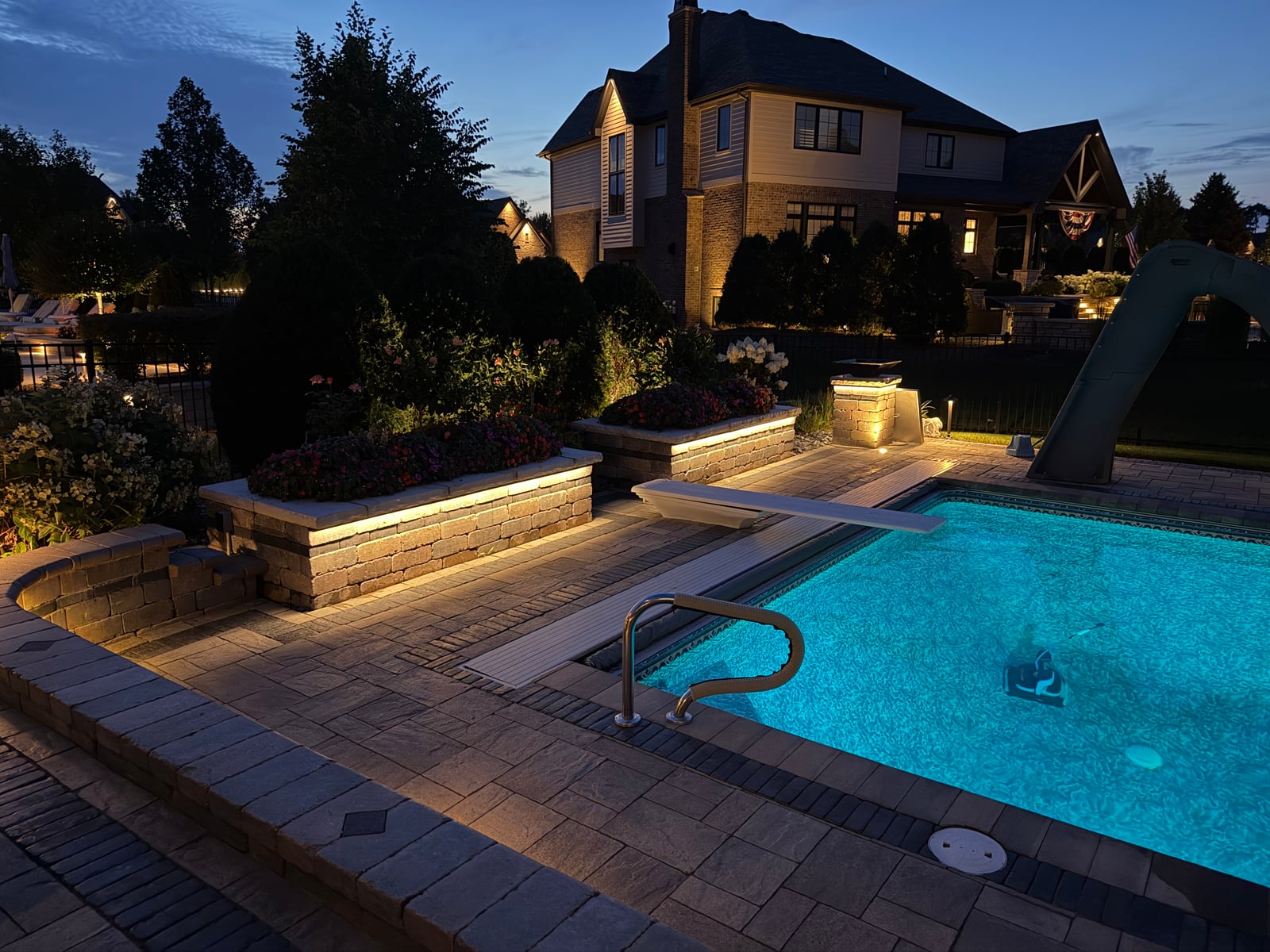

Project Photos
